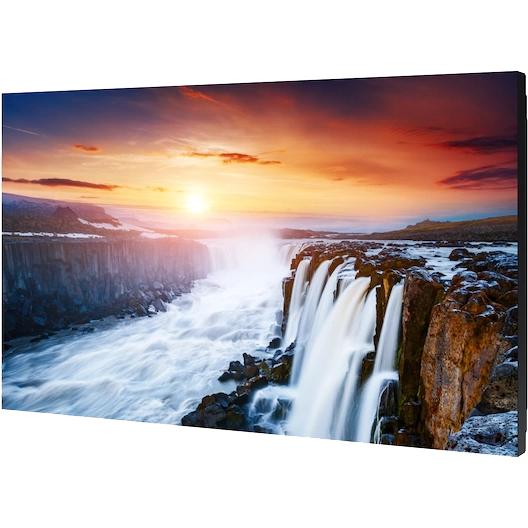

VH55R-R – Razor Thin Video Wall Display for Business
Seamless video walls with razor-thin bezels and advanced picture enhancement technology.
1. Nearly Invisible 0.44mm Bezel
2. Bright 4K UHD Non-Glare Picture Around the Clock
3. Advanced Picture Enhancement Technology
4. View Content From Any Angle
5. Modern, Slim Design
6. Easy, Cost-Effective Mobile Calibration
7. Accurate, Factory-Calibrated Color
8. Powerful UHD Viewing Experience
Display
Screen Size : 55″
Panel Technology : IPS
Resolution : 1920 x 1080
Brightness : 700 nit
Contrast Ratio (Typical) : 1000:1
Viewing Angle (H/V) : 178/178
Response Time : 8 ms
Operation Hours : 24/7
Connectivity
Input
RGB: DVI-D, Display Port 1.2
VIDEO: HDMI 2.0 (2)
HDCP: HDCP 2.2
AUDIO: Stereo Mini Jack
USB: Only F/W upgrade
Output
RGB: DP1.2 (Loop-out)
AUDIO: Stereo Mini Jack
External Control : RS232C (In/Out), RJ45
Sensor : Detachable Type (IR, Ambient)
Power
Power Supply : AC 100 – 240 V~ (+/- 10 %), 50/60 Hz
Environmental Conditions
Operating Temperature : 0℃~ 40℃
Operating Humidity : 10~80%
Features
Key : Razor Narrow Bezel
Special
ACM Support (Advanced Color Management), Auto Source Switching & Recovery, Haze 25%, Temperature Sensor, RS232C/RJ45 MDC, Plug and Play (DDC2B), Videowall (15×15 (OSD)), Videowall Daisy Chain (10×10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain (Supporting UHD Resolution, HDCP Support), Smart F/W Update, Clock Battery (80hrs Clock Keeping)
24/7 Operation : Yes
System On Chip : Yes
Dimensions
Without Stand (W x H x D) : 1211.0 x 681.7 x 69.9 mm
Packaging (W x H x D) : 1414.0 x 844.0 x 257.0 mm
Bezel Width : 0.44mm (Even)
Weight
Product Weight : 16.8 kg
Package Weight : 25.1 kg
Accessories
Included in Box : Quick Setup Guide, Warranty Card, DP Cable, Stereo to DB9 Cable, Power Cord, Remote Controller, Batteries
Optional Wall Mount Kit : WMN-55VD
Optional Media Player
Signage Player Box
