Bluetooth Makes Things Simple
Get rid of complicated cables. The upgraded speakerphone’s Bluetooth capability makes connecting to tablets and mobile phones easy, and it keeps your conference room clean so you can make a strong impression.

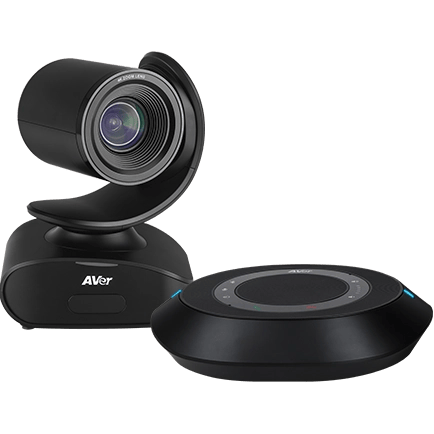

AVer SmartFrame Gets Your Meetings Started Fast
The VC540 delivers the efficiency of AVer SmartFrame to your meeting room. SmartFrame maximizes the viewable field with an auto-framing solution that quickly and effortlessly puts everyone in your meeting into frame.
Professional Clarity with a 16X total Zoom
Enhance your communication by showing every detail precisely and smoothly. The VC540 is embedded with a 16X total zoom and multi-coated autofocus optics to present complex product details in crystal-clear quality.
Cutting-Edge 4K Ultra HD
The VC540 uses a Sony™ high-quality sensor and multi-lens glass to provide the sharpest video possible. Also, an advanced image-processing engine allows you to display natural, vividly colored details even in challenging lighting conditions and on very low-latency networks.
Specifications

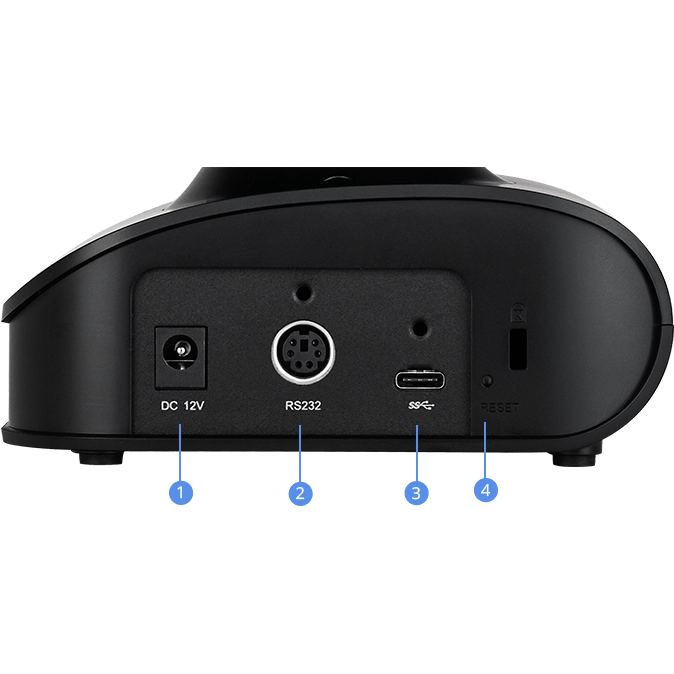

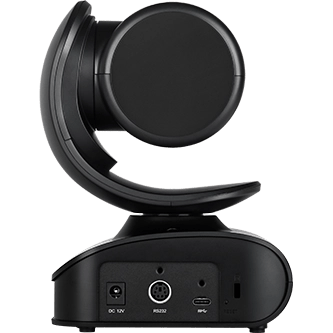

Camera Back Panel
1. DC 12V
2. RS232 in/out
3. USB 3.1 Type-C
4. Reset
FONE540 Speakerphone Back Panel
1. Phone in
2. Daisy-chain up to 3 speakerphones or 4 microphones
3. Line out
4. Micro USB 2.0
5. LAN for IP remote access
6. DC 12V

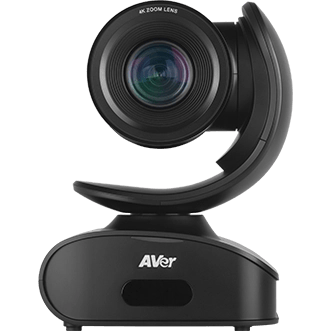

Camera
Ultra-crystal-clear image support up to 4K
Frame rate: 4K 30fps, 1080p , 720p , 640×480, 320×240 at 60, 30, 15fps
SmartFrame: automatic FOV adjustment to fit all participants
16X zoom
Autofocus: minimum working distance 1 meter
86° horizontal field of view
Backlight compensation and 2D noise reduction technology for optimizing light balance in varying conditions
Standard tripod screw holes
Analytics API: enterprises and third-party software providers can obtain people-counting data to better understand meeting-space usage

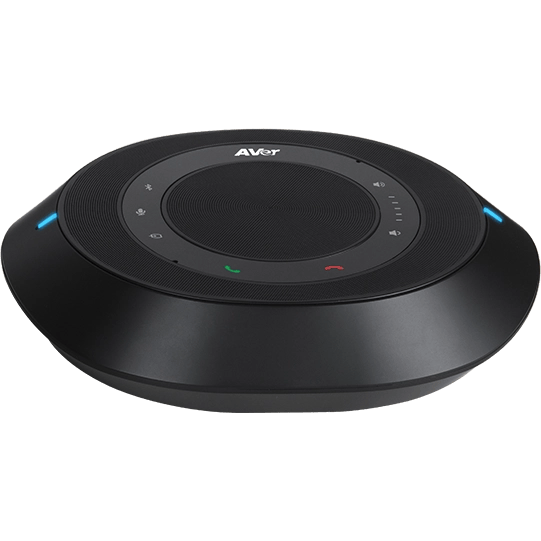

Speakerphone
Bluetooth / USB Wired
Full-duplex microphone array with echo cancellation
Advanced noise suppression
2-microphone array
3.5 mm phone-in Jack
3.5 mm line out
Speaker volume: adjustable to 90 dB SPL at 0.5 m
Touch controls for volume down/up, mute, phone input, call, and hang up
Can bridge phone-in and USB into one call
Security: Kensington slot
Motorized Pan & Tilt Movement
Pan: ±160°
Tilt: +90° (up) -30° (down)
10 camera presets (via remote control)
Fast and quiet pan & tilt movement
Connectivity
Mini DIN 6 for RS232 connector for camera
USB Type-C connector for camera
Micro USB connector for speakerphone
IP (RJ45) connector for speakerphone
Bluetooth for speakerphone
Video Format
YUV, MJPEG
USB
2.0, 3.1 Gen1
UVC (USB Video Class) 1.1
UAC (USB Audio Class) 1.0
Control
IR remote control
VISCA/pelco and P/pelco D via RS232
UVC/plug-and-play
PTZApp
Optional Accessories
Mini DIN 6 to RS232 adapter for camera
Expansion Speakerphone (10 m cable included, daisy-chain up to three speakerphones)
Expansion Pair Microphone (Two 5 m cables included, daisy-chain up to four microphones)
USB 2.0 type-C to type-A Cable (16 ft)
Warranty**
Camera/Speakerphone: 3+2 years
Accessories: 1 year
Security and Mount
Camera mount included for wall or ceiling
Kensington slot
System Requirements*
Windows 7/10/11
Mac OS X 14.4 or later
Chromebox 3 version 94.0.4606.114 or later
Hardware Specifications*
Processor: 3.2 GHz Intel® Core™i5-4460 or later
4 GB RAM
USB 3.1 port, backward compatible with USB 2.0 port
Free Applications for Meeting Collaboration (for Windows® and Mac Devices)
PTZApp
Upgrade firmware automatically or manually
Control camera
Set parameters and adjust camera image
Diagnose operating status
View live video
EZLive
Real-time streaming / annotating / snapshots /video recording
Environmental Data
Operation temperature: 0°C ~ 40°C
Operation humidity: 20% ~ 80%
Storage temperature: -20°C ~ 60°C
Storage humidity: 20% ~ 80%
Dimensions
Package dimensions: 259 x 259 x 349 mm
Package weight: 4.6 kg
Camera: 130.7 x 97.8 x 171.1 mm
Speakerphone: 220 x 181.5 x 49.5 mm
Remote control: 200 x 50 x 21 mm
Package Contents
CAM540 Camera
FONE540 Speakerphone
Remote control
Power adapter x 2
Power cord (6 ft)
USB 3.1 type-C to type-A Cable (6 ft)
Micro USB 2.0 to Type-A cable (16 ft)
3.5 mm aux cable (3 ft)
Warranty card
Quick Start Guide
Metal mount, tripod screws
Batteries
Compatible Applications
Zoom, Microsoft® Teams, Skype for Business, Skype, Google Meet, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting ®, TrueConf, Adobe® Connect™, Cisco Webex®, Fuze, GoToMeeting™, Vidyo, vMix, WebRTC, Wirecast, XSplit
* For 4K UHD support, please check your system/hardware requirements with your software application provider.
** Please register online to receive a free 2-year warranty extension. For detailed warranty information, please contact an AVer representative.
*** Specifications may vary depending on location and are subject to change without notice.
