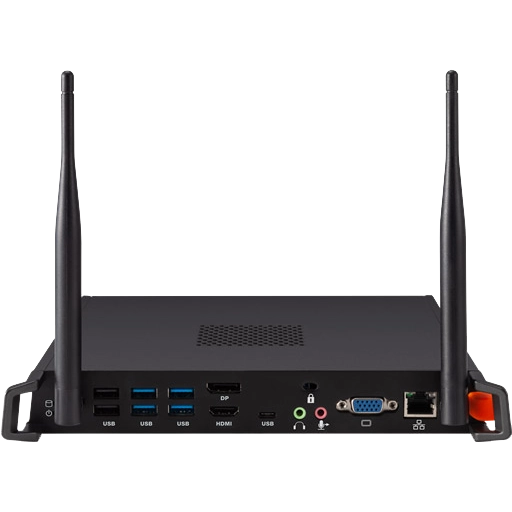

Windows Slot-in PC for ViewBoard® IFP50 Series
The ViewSonic® VPC15-WP-3 Windows slot-in PC is the ideal integrated solution for the ViewBoard® interactive flat panel IFP50 series. This slot-in PC module supports high-definition audio and video, and is bundled with myViewboard and vCast software. Wired connectivity options, including 4K HDMI, VGA, USB 3.0, and Gigabit LAN RJ45, ensure that you stay connected to your peripheral devices. With dual-band Wi-Fi and Bluetooth, a powerful Intel® Core™ i5 processor, 8GB DDR4 memory, and 128GB SSD storage, the VPC15-WP-3 contains the computing power needed to operate CPU intensive applications.
—
Spesifikasi
Core
• CPU: Intel 8th Gen. Coffee Lake series i5-8400
• Grafik: Intel® UHD Graphics 630
• Total Available Graphics Memory: 64GB
• Max Resolution up to 4096×2304@60Hz
Penyimpanan
• Tipe: 260-pin DDR4 SO-DIMM x 2
• Kapasitas: 8GB
• Dimensi: M.2 -2242(22 x 42 mm) / 2280(22 x 80 mm)
• Kapasitas: 128GB SSD
• Interface: M.2 -2242/2280
Perangkat lunak
• Sistem operasi: Windows 10 Pro 64 bit
INPUT
• MIC (Mikrofon): x1
OUTPUT
• RGB / VGA: x1
• DisplayPort: x1 (max. resolution 4096×2304@60Hz)
• HDMI: x1 (max. resolution 3840×2160@24Hz)
• Audio: x1 Earphone Out
LAN
• RJ45: 1 x RTL8111(Gigabit)
Nirkabel / Bluetooth
• Intel 3165
• 802.11 a/b/g/n/ac (2.4GHz/5GHz) / BT4.2 ; BLE
USB
• Tipe A: USB 3.0 x 4, USB 2.0 x 2
Mendukung Format Media
• Format video: Container: ASF, WMA, WMV, WM, ASX, WAX, WVX , WMX, WPL, WMD, AVI, MPG, MPEG, M1V, MP2, MP3, MPA, MPE, M3U
• Format gambar: Container: JPG, JPEG, JPE, JFIF, BMP, , DIB, PNG, GIF, TIF, TIFF
• Audio codec: Container: MID, MIDI, RMI, AIF, AIFC, AIFF, WAV, CDA
Bundle Software
• myViewBoard for windows,
• vCast for Windows
Power
• Tegangan: AC 110-240V 50 / 60Hz
• Konsumsi: 95W
OPERATING CONDITIONS
• Suhu (º C): -5°C to 45°C
• Kelembaban: 10% ~ 90% @ 40°C Non-condensing.
DIMENSI
(W x H x D)
• Fisik (inci / mm): 246.2*265.4*32.2mm
• Kemasan (inci / mm): 350*310*90mm (1pc)
• 495*370*340mm (5pcs)
WEIGHT
• Net (lb / kg): 4.3lb / 1.95kg
• Gross (lb / kg): 4.63lb / 2.1kg
REGULATIONS
CE, R&TTE, FCC, FCC-IC-ID, cTUVus, , RCM, BSMI, NCC (TBD)
ISI PAKET
1. VPC15-WP
2. ViewSonic Wizard CD
3. QSG
* Diperbaharui Januari 2026
