Artistic Space beyond Display LG OLED Signage
This is an innovative display option in which OLED panels are fixed between two layers of tempered glass, one at the front and one at the back. As the surrounding structure is transparent, the display gives the impression that the signage is floating in the air and that the projection is coming directly from the glass pane.
Unrivaled Picture Quality
Perfect Black
Limitless contrast and deepest black Self-lighting pixels switch off completely to reproduce black. No light bleeding. Absolute black offers infinite contrast.
Unrivaled Picture Quality
Perfect Color
Accurate & stable color reproduction
Self-lighting pixels bring colors to life with superb accuracy.
Unrivaled Picture Quality
Perfect Viewing Screen
Wide viewing angle
LG OLED Signage delivers awe-inspiring picture quality across the entire screen, even from wide viewing angles.
Ultimate Elegance of Design
Perfect Design

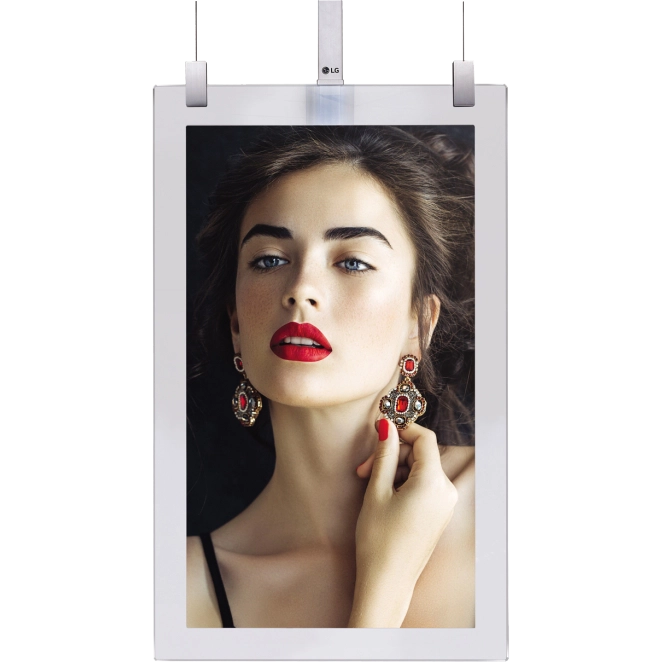

With its unbelievably slim display, LG’s OLED technology unlocks a new world of design flexibility. A dedicated hanging accessory supports the display, making it look like it is floating in the air and giving a supernatural effect.
Ultimate Elegance of Design
OLED in Glass Design
Consisting of slim glass panes and OLED panels, the wallpaper OLED signage in glass provides viewers with the impression that content is being projected directly from the glass itself.
Extraordinary Viewing Experience
Two Displays for Multiple Use
Wallpaper OLED signage in glass is a double-sided display which provides a two-way media experience while requiring less space thanks to its innovative slim and hanging design. It is an excellent way to partition space while communicating your message using both sides of the panel.
Fitur Utama LG Dual-view Flat OLED Signage
• Brightness(Typ.): 400 cd/m² (APL 25%)
• Depth: 13 mm (Head)
• Interface: HDMI/ DP/ USB(2)/ RS232C/ RJ45/ Audio / IR
• Wallpaper OLED in glass design
Spesifikasi Lengkap
ACCESSORY
• Basic : Remote Controller, Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS232C Gender, RS232 Cable (4p-4p), FFC Cables (for Connection between Panel and Signage Box), DP Cable, LAN Cable, LC (VLC Cable)
CERTIFICATION
• EMC : FCC Class “A” / CE / KC
• ErP / Energy Star : Yes / No
• Safety : IEC 60950-1 / EN 60950-1 / UL 60950-1
CONNECTIVITY
• External Control : RS232C In/out, RJ45 (LAN) In/out, IR In
• Input : HDMI, DP, USB (2)
• Output : DP, Audio
ENVIRONMENT CONDITIONS
• Operation Humidity : 10 % to 80 %
• Operation Temperature : 0°C to 40°C
MEDIA PLAYER COMPATIBILITY
• External Media player Attachable : Yes
• OPS type compatible : No
PANEL
• Brightness : 150/400 cd/m2 (APL 100% / 25%) * Average picture level
• Resolution : 1,920 x 1,080 (FHD)
• Screen Size : 55″
PHYSICAL SPECIFICATION
• Bezel Width (T/B/L/R) : 104.4 / 83.7 / 83.7 / 84.4 mm (T/B/L/R) * Off-bezel, w/ Glass108.3 / 87.6 / 93.3 / 88.3 mm (T/B/L/R) * On-bezel, w/ Glass3.5 / 3.5 / 3.5 / 6.9 mm (T/B/L/R) * On-bezel, w/o Glass
• Dimension (W x H x D) : (Head) 861.3 x 1,406.2 x 13 mm * w/o Hanging Acc.(Signage Box) 413 x 353 x 57.3 mm
• Carton Dimensions (W x H x D) : 1,880 x 1,015 x 363 mm (Pallet : 1,800 x 363 x 120 mm)
• Weight : (Head) 28.5 kg (Signage Box) 3.5 kg
• Packed Weight : 64.0 kg (incl. Glass Module 1ea, Signage Box 2ea)
POWER
• Power Supply : 100-240V~, 50/60Hz
• Power Type : Built-In Power
• Power Consumption (Typ. / Max.) : 309/318 W *8 Color Bar Based
SOFTWARE COMPATIBILITY
• Content Management Software : SuperSign CMS
• Control and Monitoring Software : SuperSign Control/Control+
* Diperbaharui Oktober 2025
