Insight Video Prosesor Non Modular Series IN-VP0412F/IS

February 6, 2024Product type: .Product categories: and .

– 2U Chassis
– 4 channels HDMI input, 12 channels HDMI output
– HDMI Type A connector, HDCP1.4, HDMI1.3
– EDID
– Max resolution 1920*1080@60hz
– LCD/LED/DLP Supported

SKU: IN-VP0412F/IS Categories: ,

VIDEO PROCESSOR Non Modular Series is professional video image processing product which is based on the development of multi-windows no frame tearing LED and LCD display control technology. Adopt RS232+LAN control method, and configure HDMI input/output interface, support up to 128 scene save and recall, to meet a variety of professional system application requirements.






Features

  • Full hardware FPGA architecture, no embedded operating system, high speed core computing mechanism, excellent image processing performance.
  • Support LCD, LED splicing screen display.
  • Support seamless switching, no black screen, stuck screen, jitter, tearing and other phenomena during the switching.
  • Input supports maximum resolution of 1920×1200@60Hz.
  • Support resolution customization output, the maximum resolution is 1920×1200@60Hz, and support up to 2560 pixels width, up to 1920 pixels height for LED.
  • Control mode: RS232 serial port and LAN network port.
  • Serial port commands can realize scene calling, scene saving, scene polling, signal switching, query and setting IP.
  • Support input signal source OSD function, it’s able to set character font, size, color, transparency, position.
  • Support real-time detection of all input and output signals, to observe and detect the access status.
  • Supports arbitrary windowing, overlaying, roaming, splitting, zooming, stretching and cropping on the screen.
  • Support picture-in-picture, overlay multi-screen display, large-screen splicing functions.
  • Support up to 2 windows on single screen.
  • Support scene management, such as scene save, scene call, scene preview, scene polling.
  • Support splicing configuration import and export.
  • Supports cropping and display of any position of the signal source, the same signal can be cropped four times.
  • Support preset windowing mode, flexible call.
  • Support online upgrade of the whole machine.

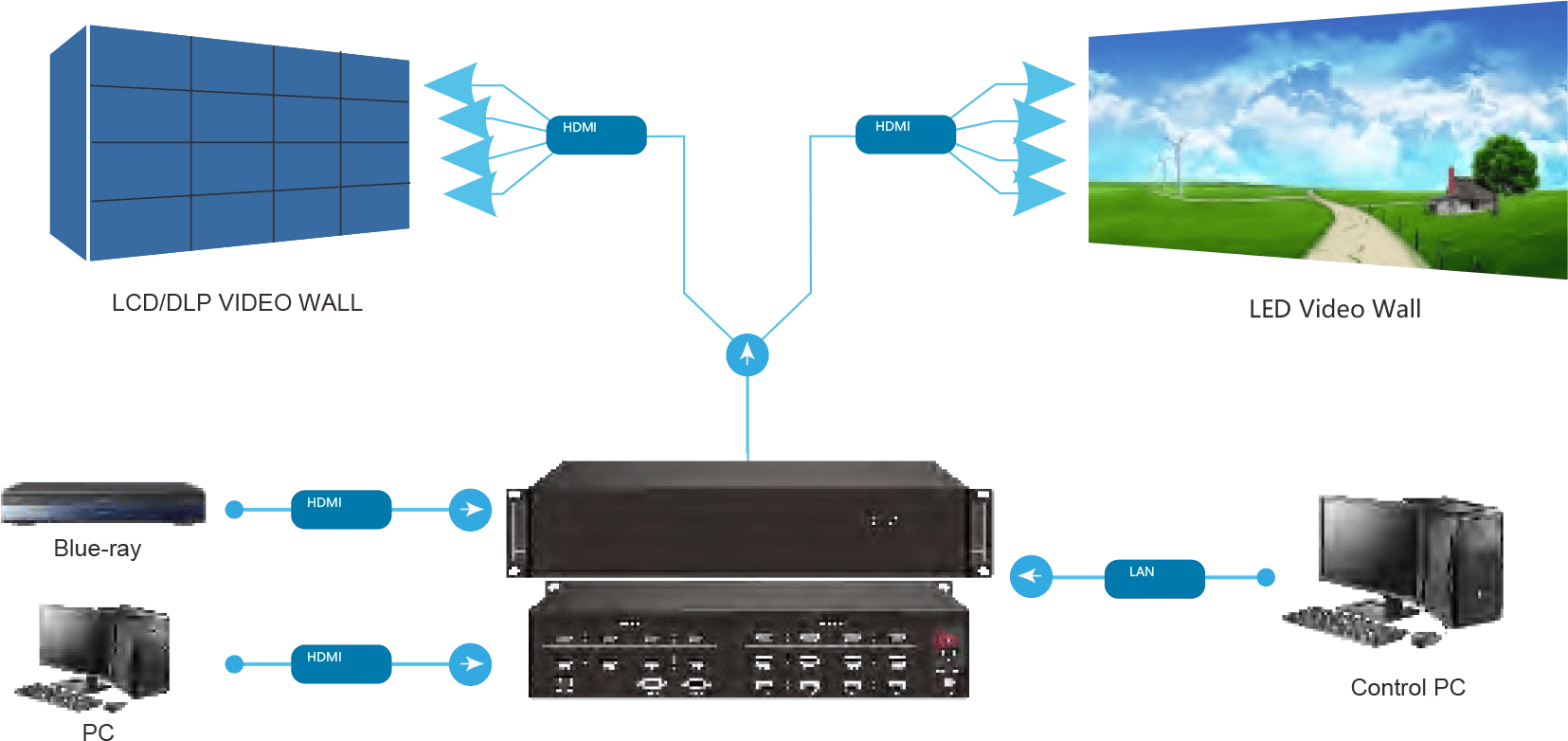

Diagram






Specifications

Product Hardware Information

  • System structure: Pure hardware FPGA architecture
  • Start up: <8s
  • Operating system: No CPU and operarting system
  • Board type: Pure hardware pluggable, hot-swappable structure

Input/Output Signal

  • input type: HDMI
  • Outout type: HDMI

Image Processing

  • Display mode: Roaming, overlay, zoom in/out, multi-windowing, scene switch, PIP, full screen and combination screen.
  • Scene/Signal switching time: Millisecond-pevel switching
  • Max inout resolution: 1920*1200@60Hz
  • Max Output resolution: 1912*1200@60Hz
  • Single-screen window: 2 windows on one screen
  • Maximun scenes: 128
  • Control method: RS232/Network and compatible with third party control system

Stability

  • Safety: Hardware structure, no virus interference
  • Continuity: 365 days, 7×24 hours operation

Working Environment

  • Operating temperature: 0~50°C
  • Storage temperature: -15~60°C
  • Operating humidity: 10 to 90% without condensation
  • Storage humidity: 5~95% without condensation
